Digital Glass Cockpit
All-in-One Display Solution for Modern Aircraft
Enhance your cockpit with next-generation flight display technology tailored for the needs of modern aviation. The integrated 10-inch Primary Flight Display (PFD) and Multi-Function Display (MFD) solutions offer a transformative experience for pilots flying light aircraft, ultralights, and experimental planes. These displays are purpose-built for clarity and visibility — even under direct sunlight — thanks to their high-brightness, anti-glare touchscreens. Whether you’re navigating a cross-country route or monitoring critical engine performance, the intuitive layout and high-resolution graphics provide instant access to essential flight data. Beyond hardware, the system comes equipped with a comprehensive and evolving glass cockpit software suite.
This includes dynamic VFR chart data, real-time engine and sensor visualization, and flight planning capabilities that rival more expensive avionics.By unifying flight instruments, navigation, and environmental awareness into a single, user-friendly interface, these displays bring a new standard of safety, efficiency, and situational control to every cockpit they enter.
“From VFR navigation to IFR procedures, from engine monitoring to weather updates – this glass cockpit solution gives you all the tools for a safer and more efficient flight. Whether you’re retrofitting an ultralight or building a new experimental aircraft, the modular system adapts to your needs.”
All-in-One Navigation
Integrated 2D moving map with VFR data, route profile view, and intuitive flight planning — all in one display, no extra devices needed.
Low Power, High Performance
Ultra-efficient power consumption with full operational capability — perfectly suited for light aircraft and experimental builds.
Full Connectivity
Built-in Wi-Fi, 4G, and Ethernet ensure real-time updates, flight sync, and weather data — wireless, seamless, and hassle-free.
Contact With Us
Let’s Work Together?
Delivering high-quality parts and components for the aviation, maritime, automotive, and heavy industries. Ensuring reliability and precision in every product.
Have Any Question?
+48 516 494 849
Send Email
contact@e-worldparts.com
Contact Us

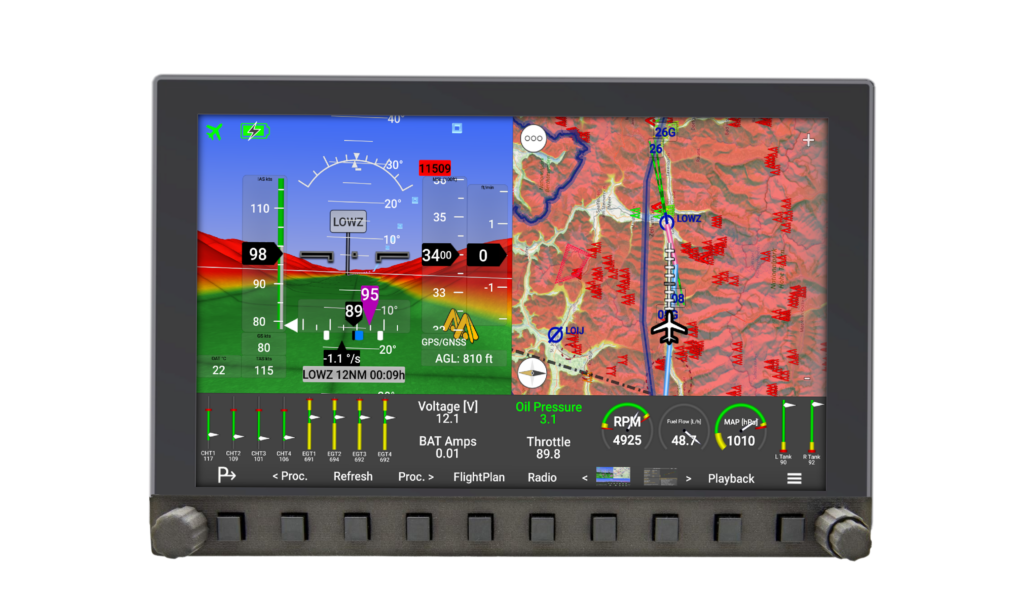

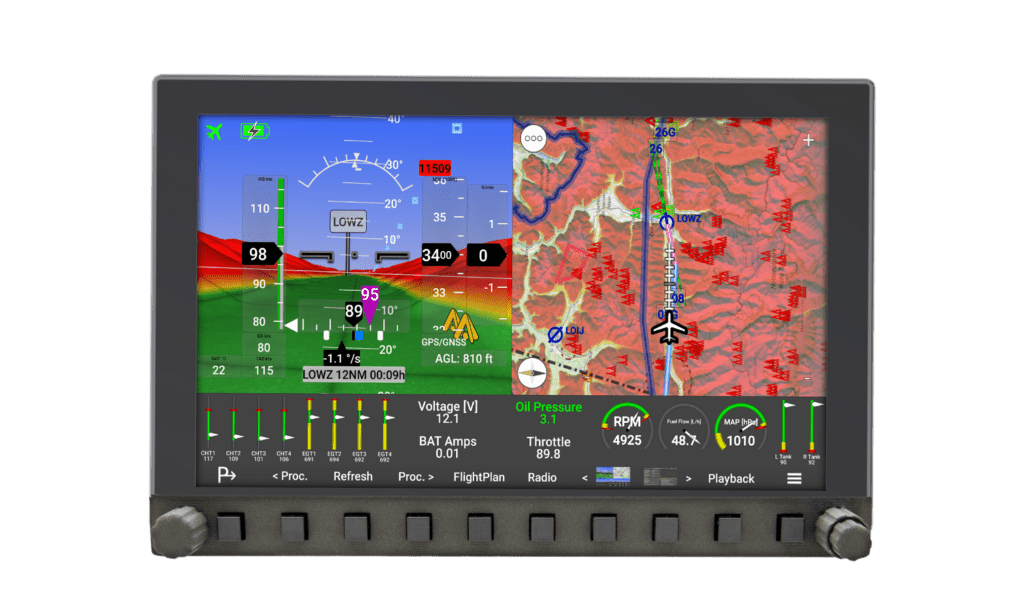

Intuitive Display Technology for Modern Pilots
Designed for maximum readability and intuitive use, the 10-inch touchscreen display provides pilots with clear flight information even in direct sunlight. The high-resolution interface combines PFD and MFD functionalities, allowing for seamless switching between engine data, navigation, and situational awareness tools. With built-in 4G, WiFi, and Ethernet, pilots stay connected and informed throughout their journey, whether flying VFR or IFR.
Versatile Sensor Integration for Reliable Flight Data
The modular SensorBox included with the display offers comprehensive data acquisition, supporting engine metrics, pitot-static inputs, and a wide range of analog and digital signals. From basic engine parameters to real-time altitude and airspeed readings, this compact unit ensures accuracy and redundancy. With low power requirements and a lightweight design, it is ideal for both certified and experimental aircraft.
Display Hardware Highlights
10-inch Sunlight-Readable Touchscreen
Integrated 4G Modem, WiFi, and Ethernet
Multi-GNSS Support (WAAS, EGNOS, etc.)
Power Supply: 9–36V, Power Consumption ~12W
Dimensions: 249mm x 166mm
- Weight: ~1.5kg (3.3lb)
2D Moving Map with VFR Chart Data
Profile View with side terrain visualization and airspace overlays
Flight Planning with waypoint navigation
Engine and pitot-static data visualization
Basic Sensor Integration
- The included SensorBox provides rich input for engine, flight, and environmental data:
Engine data via CAN bus or analog
Pitot-static system for airspeed and altitude
3x Impulse Counters
2x CAN, 2x RS232
11 Universal Analog Inputs
8 Thermocouples (extendable)
Power Consumption: ~7W (0.6A @ 12V)
Weight: ~0.7kg (1.5lb), Dimensions: 120mm x 103mm x 56mm
Advanced Cockpit Software for Situational Awareness
Pilots can upgrade to advanced software that transforms the flight experience. Features such as 3D synthetic vision, AHRS, and terrain-aware profile views give aviators a detailed understanding of their environment. Additional tools like weather overlays, flight logging, and IFR chart data enhance both planning and inflight decision-making. Whether navigating through complex airspaces or executing precise approach procedures, the system delivers clarity and confidence.
Modular Configurations Tailored to Your Aircraft
From entry-level avionics setups to professional-grade installations, the system offers scalable options to match your operational needs. Optional enhancements like rotary encoders, FLARM integration, and dedicated ADS-B reception allow for precise customization. The combination of robust hardware and flexible software ensures long-term upgradeability, making it a future-proof solution for today’s demanding pilots.
System Comparison Table
| Feature | Basic Version | Advanced Version | Pro Version |
|---|---|---|---|
| 10″ Sunlight-Readable Display | ✓ | ✓ | ✓ |
| Engine & Pitot-Static Sensors | ✓ | ✓ | ✓ |
| Moving Map & VFR Charts | ✓ | ✓ | ✓ |
| 3D Synthetic Vision | ✗ | ✓ | ✓ |
| ADS-B IN | ✗ | ✓ | Dedicated 1090 MHz |
| ILS Receiver | ✗ | ✓ | ✓ |
| FLARM In & Out | ✗ | ✗ | ✓ |
| External Buttons/Encoders | Optional | Optional | Optional |
| OAT & True Airspeed | ✗ | ✗ | ✓ |
| Weather & Flight Logging | ✗ | ✓ | ✓ |
